Oilfield Power & Drive Systems
A complete VFD (Variable Frequency Drive) power and electric drive system for oil & gas operations. From drilling rig electrification to fracturing drive stations, AC motors, and cloud monitoring—delivered as one integrated solution, not separate products.
System components — click to jump to details

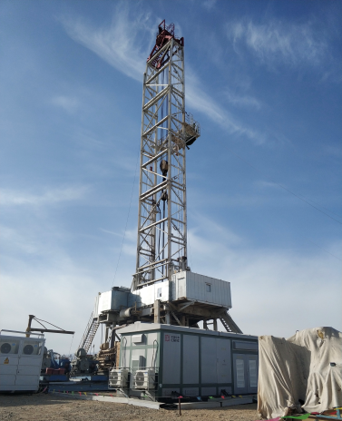

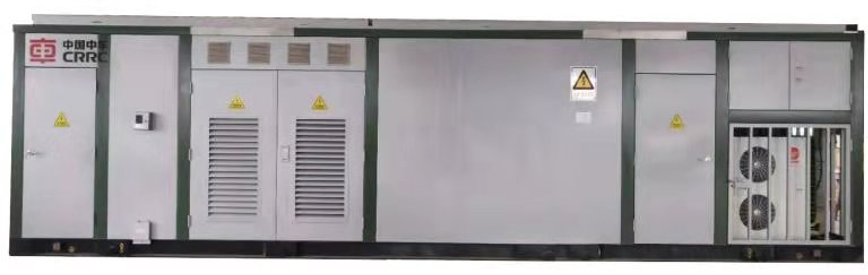

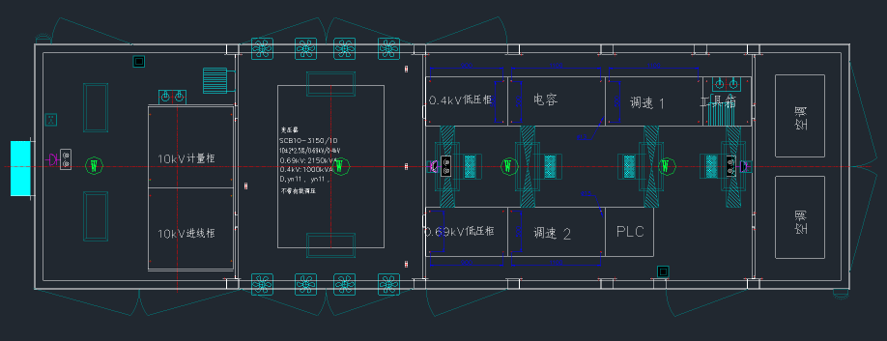

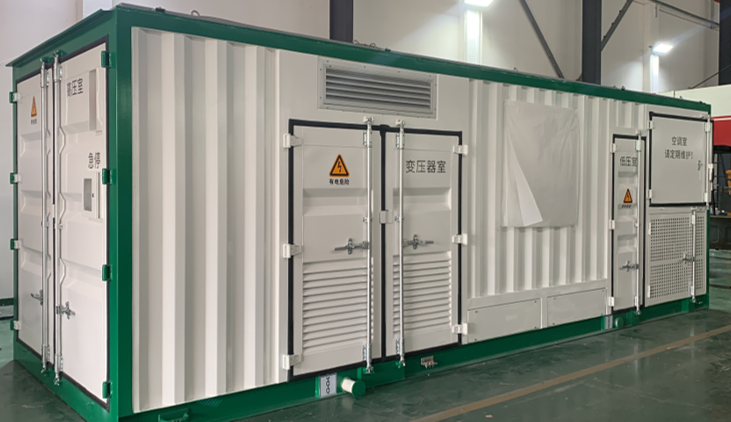

Intelligent VFD Container System (Drilling Rig)
Click to enlarge
Click to enlarge
Click to enlarge
Click to enlarge
A high-performance Varied Frequency Drive (VFD) container solution that enables the transition from diesel-driven to electric-driven operations for drilling rigs.
Specifications
Features
1. Significant fuel cost savings: approx. $80,000 per month; 2. Environmental protection with advanced noise reduction technology; 3. Low maintenance: cleaning-free AC motors; 4. Full integration of transformers, regulating cabinets, and PLC control; 5. Supports remote management via industrial Internet.

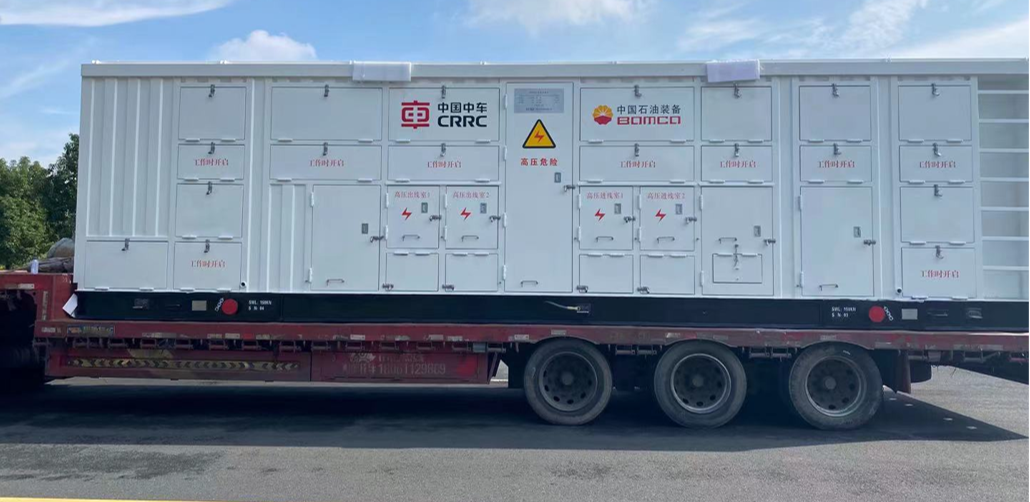

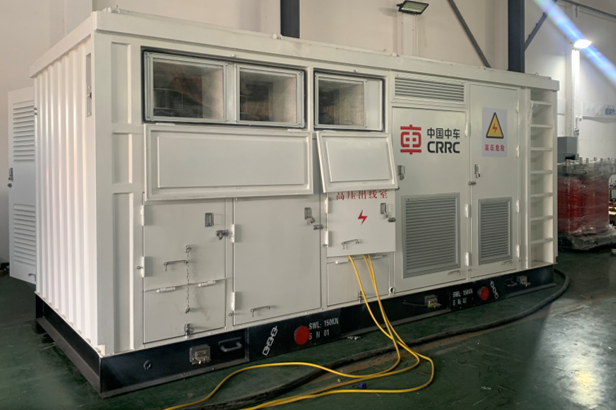

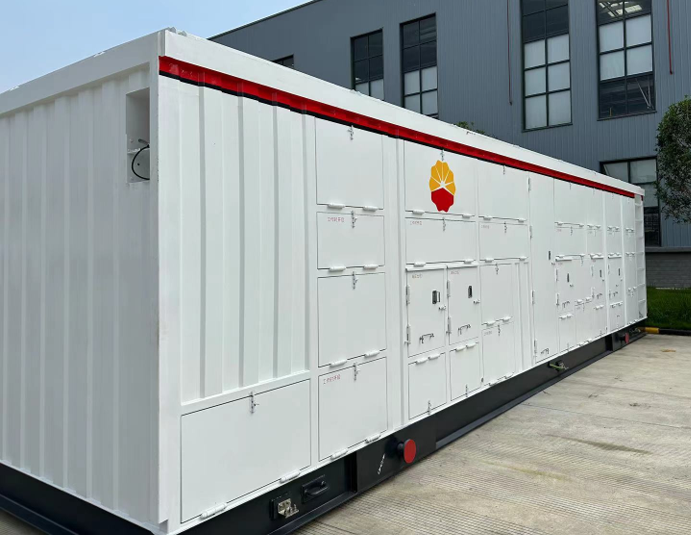

High-Capacity Fracturing VFD Drive Station
Click to enlarge
Click to enlarge
Click to enlarge
Ultra-high power electric drive frequency control system specifically engineered for shale gas exploitation and large-scale fracturing units.
Specifications
Features
1. Appraised as 'International Advanced Level' by CNPC; 2. National Major Technical Equipment Project recipient; 3. Operates the world's largest single-unit power electric drive fracturing pump; 4. Ruggedized for extreme oilfield environmental conditions.

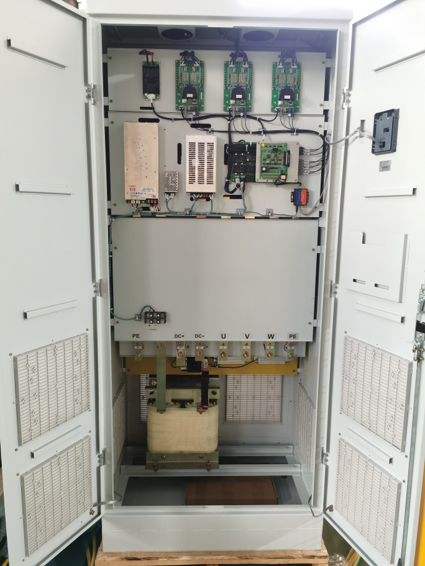

Precision AC Speed Regulating Cabinet (CX690)
Click to enlarge
Click to enlarge
Industrial-grade power electronics module providing precise speed and torque regulation for high-power AC motors.

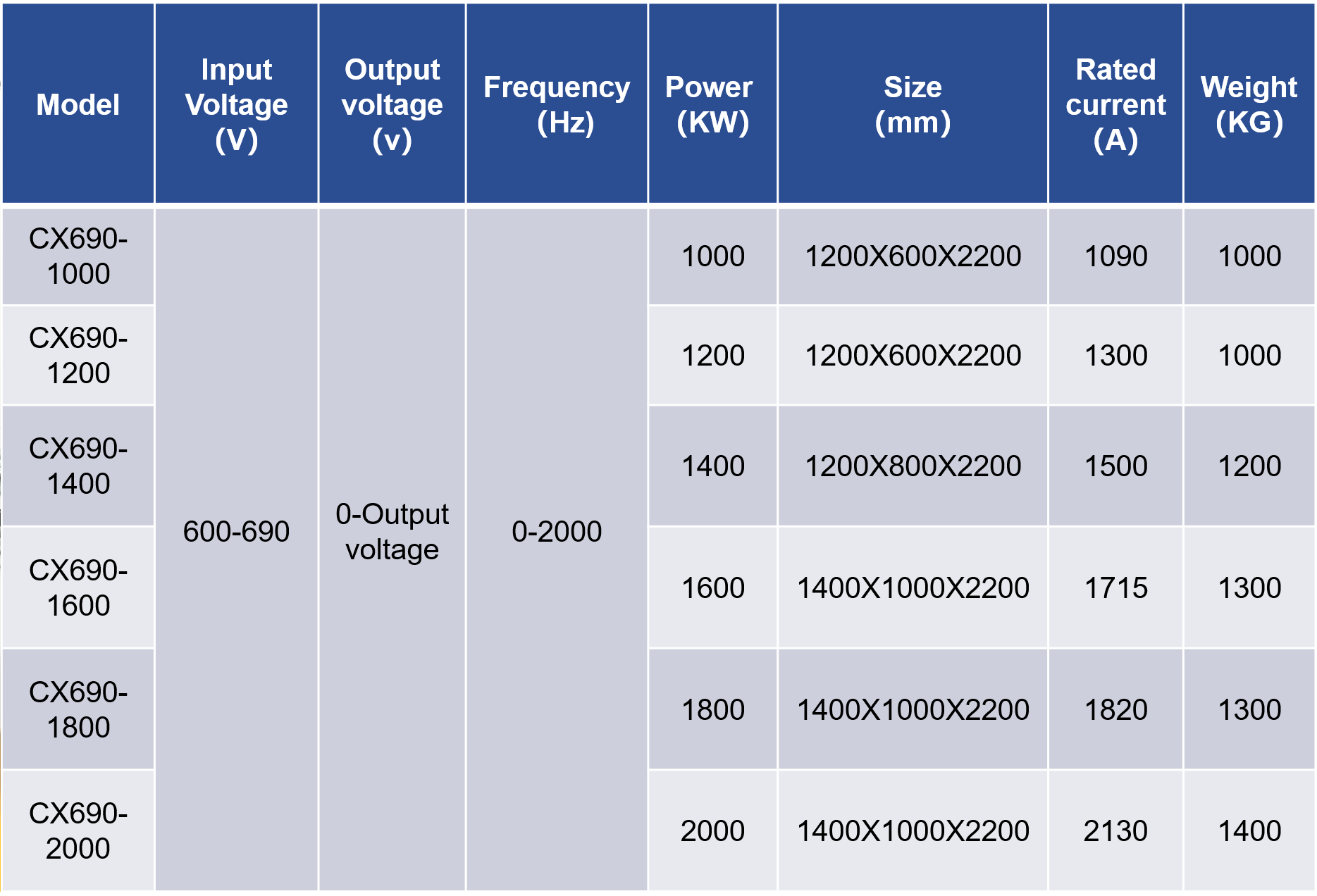

Specifications
Features
1. Wide frequency control range (0-2000Hz) for high-speed applications; 2. Modular cabinet structure for scalable power deployment; 3. Integrated liquid or air cooling options; 4. High-resolution HMI interface for real-time monitoring.

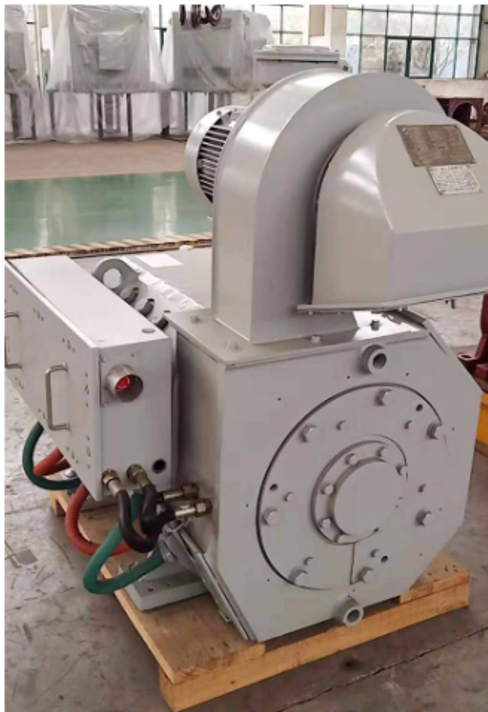

High-Efficiency AC Traction Motor
Click to enlarge
Heavy-duty electric drive motor optimized for traction systems in oil & gas exploration and rail vehicles.
Specifications
Features
1. Superior efficiency of 95.6% for energy-critical operations; 2. Broad frequency range (0-111.5Hz) for versatile torque output; 3. Industrial-grade insulation and sealing for harsh outdoor environments; 4. Direct replacement for traditional high-emission diesel engines.

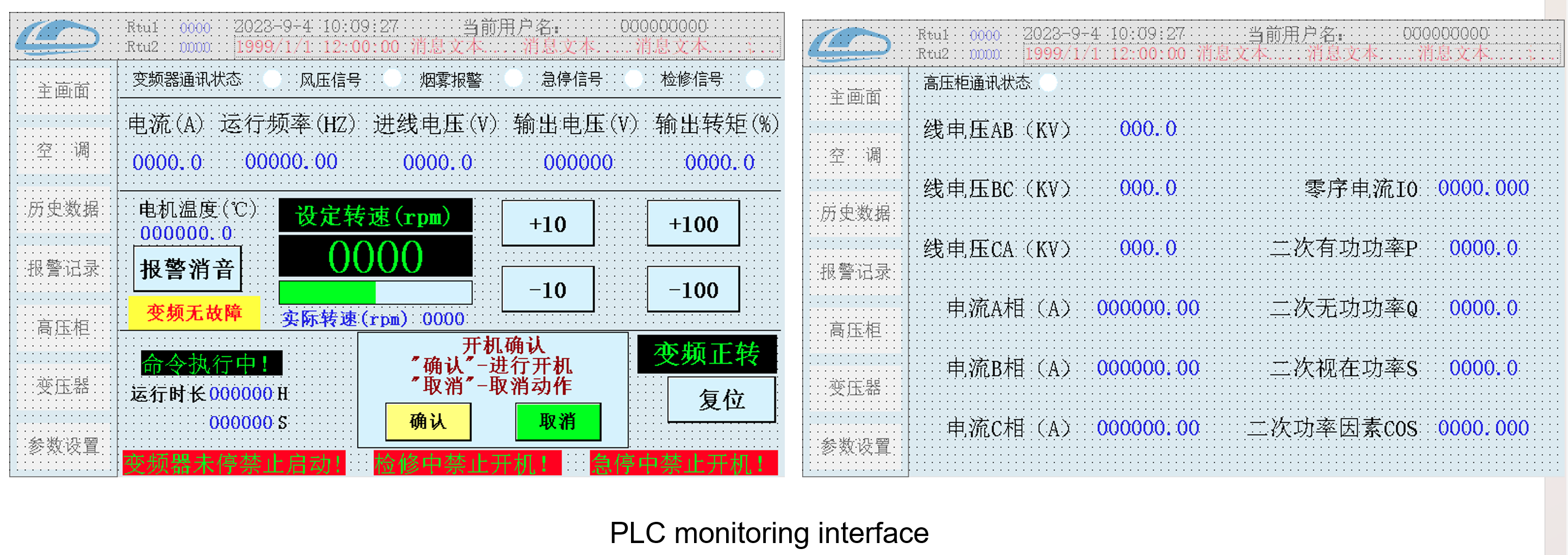

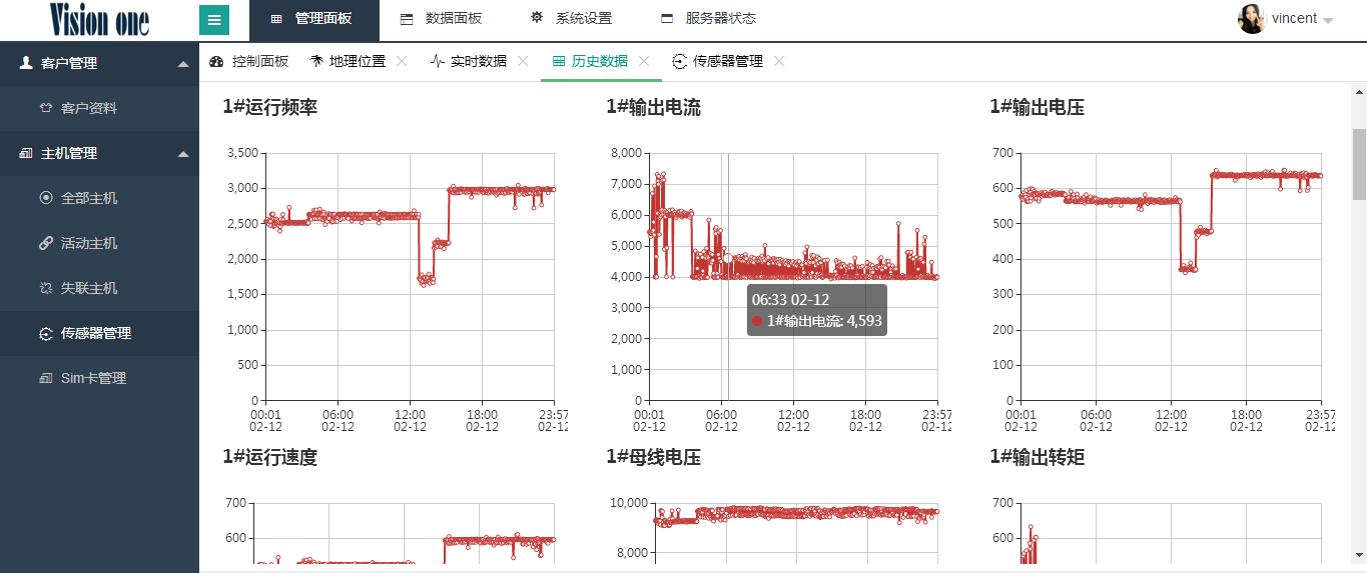

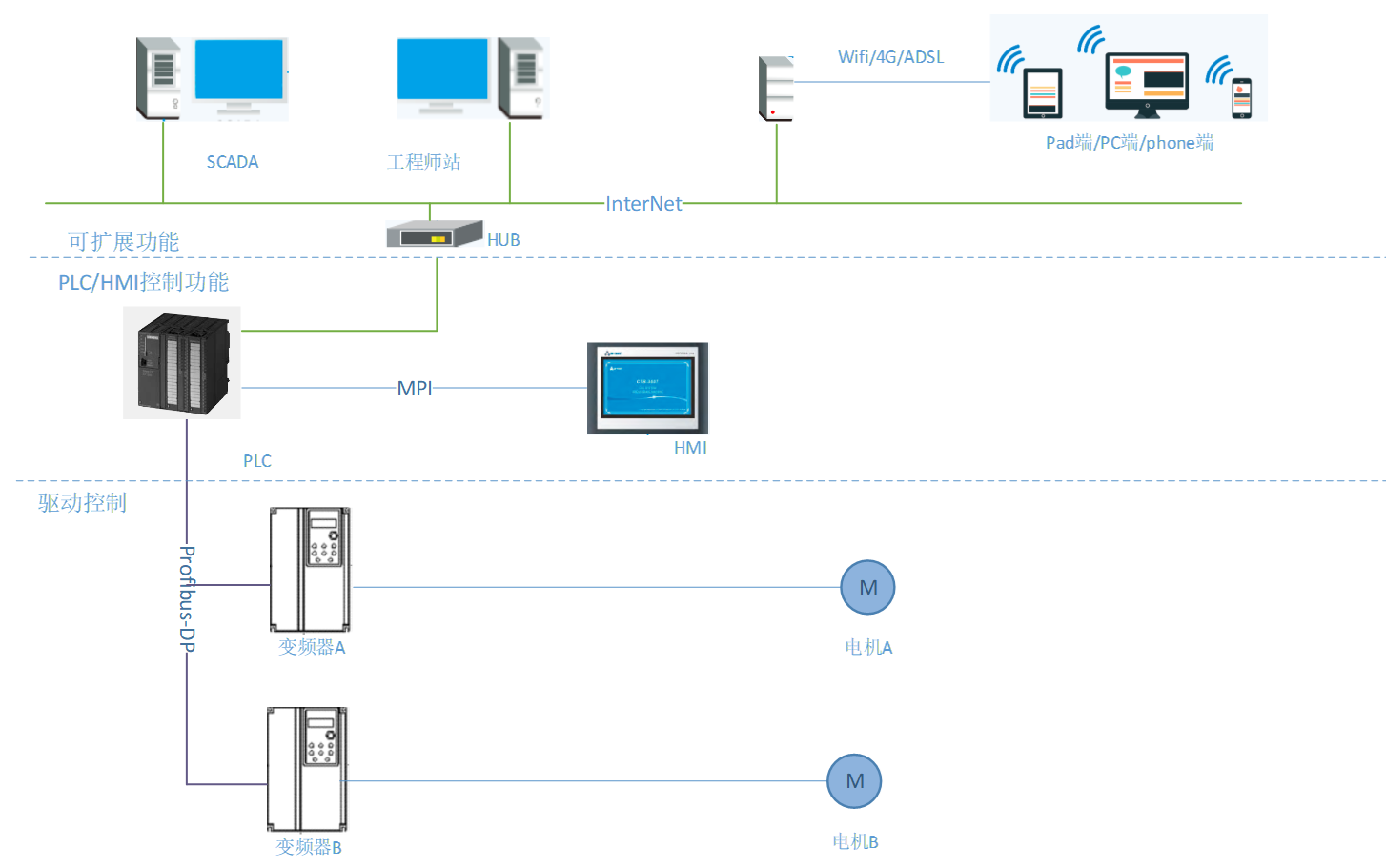

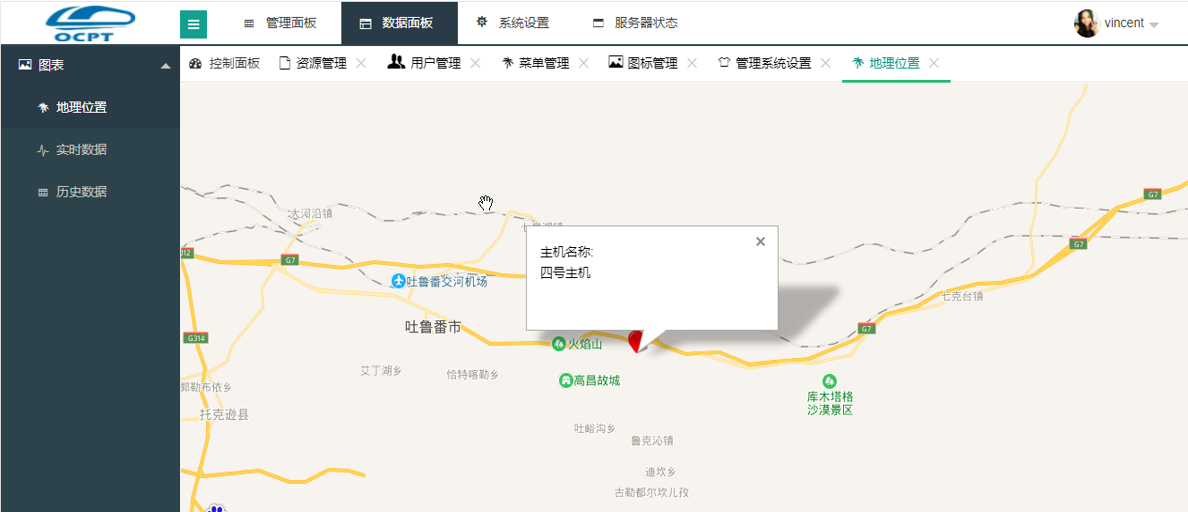

Intelligent Cloud Management & Control Platform
Click to enlarge
Click to enlarge
Click to enlarge
Click to enlarge
The digital brain for power drive systems, featuring remote monitoring, real-time analytics, and automated equipment positioning.
Specifications
Features
1. Real-time dynamic curve visualization for system performance; 2. Integrated GPS/BD modules for worldwide equipment tracking; 3. Multi-terminal support: PC, Pad, and Mobile Phone; 4. Customized HMI design tailored to site conditions; 5. Automated fault diagnosis and historical data archiving.
